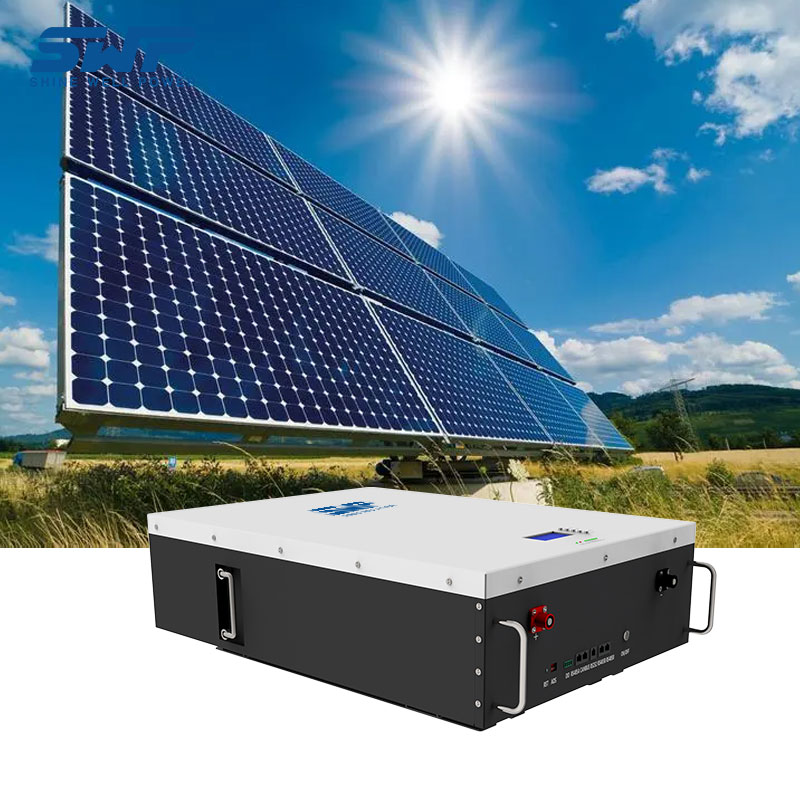

51.2V100AH Wall Mounted Energy Storage System with Screen

SWP as a factory ,Wall-mounted energy storage system is our main home energy product series !It refers to a type of battery storage system that is designed to be mounted on a wall, typically indoors or in a protected outdoor area. These systems are used to store electricity generated from renewable energy sources (such as solar panels) or to provide backup power during outages.

  • 1. Production Introduction:

    The SWP Wall Mounted Battery Storage System sounds like a promising energy storage solution for residential applications. The wall-mounted design provides convenience and easy installation, allowing users to set it up without much hassle. The inclusion of a 5-year warranty offers peace of mind and assurance of product quality.The wide storage temperature range of -20℃ to +50℃ is beneficial as it allows the system to operate effectively in various climates. Extreme temperatures can impact the performance and lifespan of battery systems, so having a wide temperature range ensures that the SWP system can function optimally in different environmental conditions.The customizable voltage feature is another valuable aspect of the SWP system. It enables users to adjust the voltage according to their specific energy needs, whether it's for a small residential setup or a larger energy demand. This flexibility ensures that the system can be tailored to suit individual requirements and maximize energy utilization.

    While the SWP Wall Mounted Battery Storage System appears to offer reliable energy storage with its notable features, it's always advisable to consult the product documentation or contact the manufacturer directly for more detailed information. This will provide you with a comprehensive understanding of the system's specifications, capabilities, and compatibility with other energy systems.

    SWP51200-PW Power Wall Battery Energy Storage System
    Electrical specificationsNominal Voltage51.2V
    Nominal Capacity200Ah
    Parallel ConnectionMax. 16 units
    BMS16S200A
    Circuit ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
    CommunicationRS232 RS485 and CAN
    Cycle Life3000 times cycles @ 100% DOD and 6000 times @ 80% DOD
    Self DischargeLess than 3% per month
    Charge Efficiency100% @ 0.2C
    Discharge Efficiency98%-100% @ 1C
    Charge SpecificationsCharge Voltage57.6V±0.8V
    Standard Current100A
    Fast Current200A
    Discharge SpecificationsStandard Current200A
    Max.Con.Discharge300A
    Cut-Of Voltage40±0.2V
    Mechanical SpecificationsDimension (mm)Customized
    Approx Weight (KG)90
    Terminal TypeKT8-10-2P Fence terminal 0r Plug-in terminal
    Cases Color/MaterialBlack / Siliver / White Metal Cases
    Cells TypeEVE 3.2V100Ah
    Temperature SpecificationsCharge Temp0℃-55℃ (32℉-131℉)
    Discharge Temp-20℃-60℃ (-4℉-140℉)
    Storage Temp-20℃-45℃ (-4℉-113℉)
    Battery TypeLiFePO4
    CycleThe cycle life shall not be less than 3000 times when DOD is 100%.
    The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5~1h; discharge according to the standard, put it aside for 0.5~1h, count as 1 cycle).
    CertificateUL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell)
    After-sales service period5 Years
    Estimate useful life≥10 Years
    With DisplayNo

    2. Features:

    Product Name: Wall Mounted Battery Storage

    Size: Customizable

    Material: Aluminum Alloy

    Voltage: Customizable

    Life Cycle: Over 6000 Times

    Protection Level: IP65

    Keywords: Power Wall Battery, Power Wall Storage System, Power Wall Storage System

    3. Technical Parameters:

    ParameterValue
    Product NameWall Mounted Battery Storage
    ColorBlack
    InstallationEasy Installation
    CapacityCustomizable
    Protection LevelIP65
    Warranty5 Years
    Life CycleOver 6000 Times
    Mounting MethodWall Mounted
    Working Temperature-20℃~+50℃
    MaterialAluminum Alloy
    Energy Storage SystemSalor
    Power Wall BatteryLiFePO4 Battery


    4. Applications:

    SWP-48200PW is a wall mounted energy storage system from the brand name SWP. This powe wall energy system is designed to store energy, and it is customizable in terms of size and voltage. It is also IP65 rated, meaning it is dust-tight and can withstand low pressure water jets from any direction. With a working temperature of -20℃~+50℃, this wall mounted energy storage system is suitable for both indoor and outdoor applications.


    5. Customization:

    Introducing the SWP-48200PW, a Wall Mounted Battery Storage System from SWP – the perfect power storage solution for your home energy needs!

    This Wall Mounted Battery Storage System features a rugged aluminum alloy construction, a sleek black design, and a customizable voltage. With a life cycle of over 6000 times, this system offers reliable and dependable power storage for your home energy needs.

    The SWP-48200PW is the ideal home energy storage system for your power wall storage needs. Salor Energy Battery has designed this system to provide a reliable source of power storage for your home needs.


    6. Support and Services:

    For technical support and service for our Wall Mounted Battery Storage product, our team is available to answer any questions you may have. Our team is comprised of industry experts with expertise in battery storage technology and can help troubleshoot any technical issues you may be having. We can also provide advice and guidance on installation and use of our product.

    We also offer a comprehensive service package for our Wall Mounted Battery Storage product. This package includes regular maintenance and inspection of the product, as well as repairs and replacements of any defective parts. We also offer a warranty for our product, ensuring that any issues you may have with the product will be addressed in a timely manner.

    If you have any questions or concerns regarding technical support or service for our Wall Mounted Battery Storage product, please do not hesitate to contact us. We are available to answer any questions you may have and provide any assistance you may need.


    7. Packing and Shipping:

    Packaging and Shipping for Wall Mounted Battery Storage

    The wall mounted battery storage is packaged and shipped according to the following guidelines:

    The product is carefully packaged in a sturdy box to ensure it arrives in perfect condition.

    The package is clearly labeled with the product name, description, and contact information.

    The product is shipped using a reliable shipping service that provides end-to-end tracking.

    The product is insured for the full retail value to ensure that it is covered in the event of loss or damage.


    8. FAQ:

    Q1: What is the brand name of this product?

    A1: The brand name of this product is SWP.

    Q2: What is the model number of this product?

    A2: The model number of this product is SWP-48100RM.

    Q3: Where is this product made?

    A3: This product is made in China.

    Q4: What is the purpose of this product?

    A4: This product is a wall-mounted battery storage solution.

    Q5: What features does this product have?

    A5: This product is designed for easy installation and is made of sturdy material for long-term durability.
