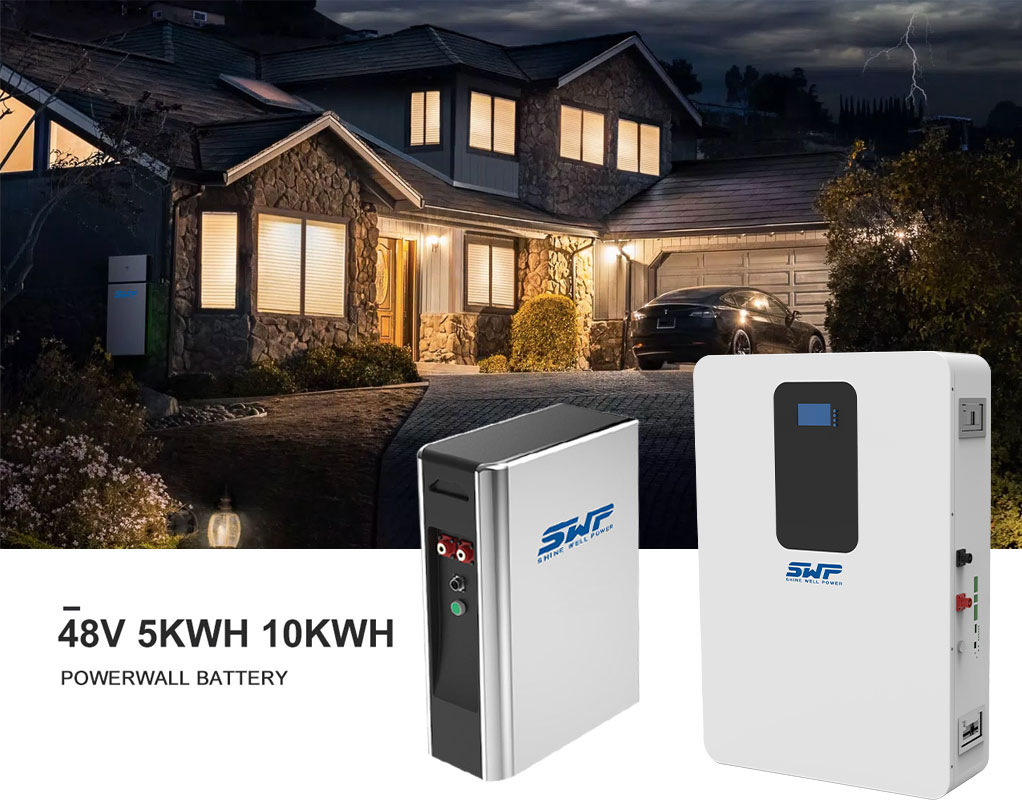

The Powerwall battery system is wall-mounted and can be installed indoors or outdoors.These systems store excess electricity generated from renewable sources or during off-peak hours for later use. This allows users to reduce their reliance on the grid and maximize self-consumption of clean energy.In the event of a power outage, a wall-mounted energy storage system can provide backup power to essential loads, ensuring continuity of electricity supply.
1. Product Description:
Salor Energy's Wall Mounted Battery Storage system sounds like a versatile and durable solution for outdoor energy storage. The customizable voltage options provide flexibility to meet various energy requirements, allowing users to tailor the system to their specific needs.
The wide working temperature range of -20℃ to +50℃ ensures that the system can operate effectively in different weather conditions, making it suitable for long-term use and stability. Extreme temperatures can impact the performance and lifespan of battery systems, so having a wide temperature range is essential for outdoor applications.
The wall-mounted design of the system offers easy installation and mounting options. This makes it convenient to secure the system in different locations, enhancing its versatility and adaptability for a range of outdoor power wall energy system applications.
While your description highlights the benefits of Salor Energy's Wall Mounted Battery Storage system, it's always a good idea to review the product documentation or contact the manufacturer for more detailed information about its specifications, capacity, warranty, and compatibility with other energy systems. This will ensure that the system meets your specific requirements and expectations.
| SWP51100-PW Power Wall Energy Storage System | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 50 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black / Siliver / White Metal Cases | |

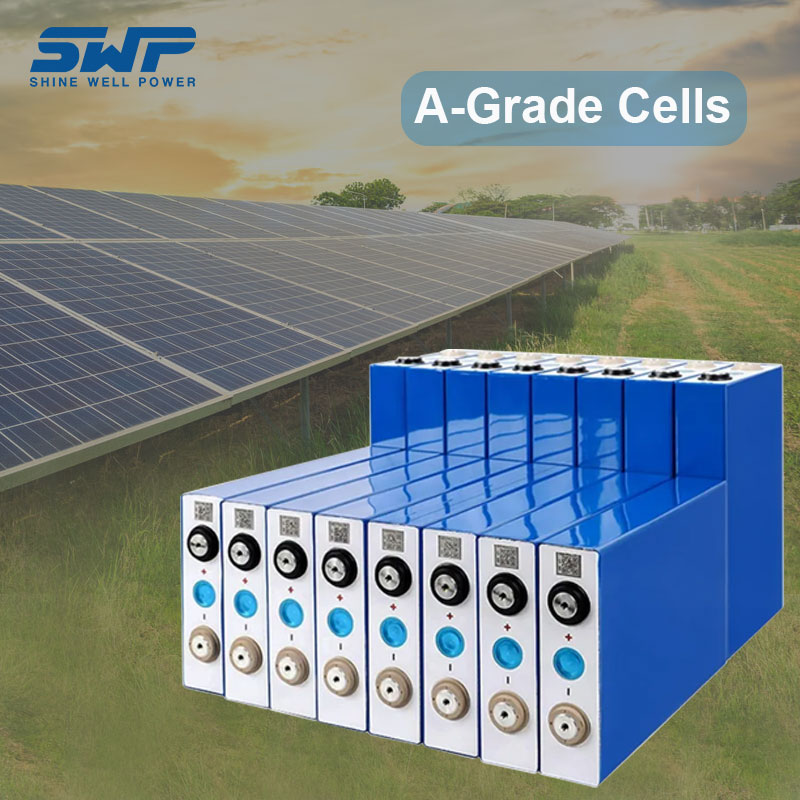

| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 3000 times when DOD is 100%. The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). | |

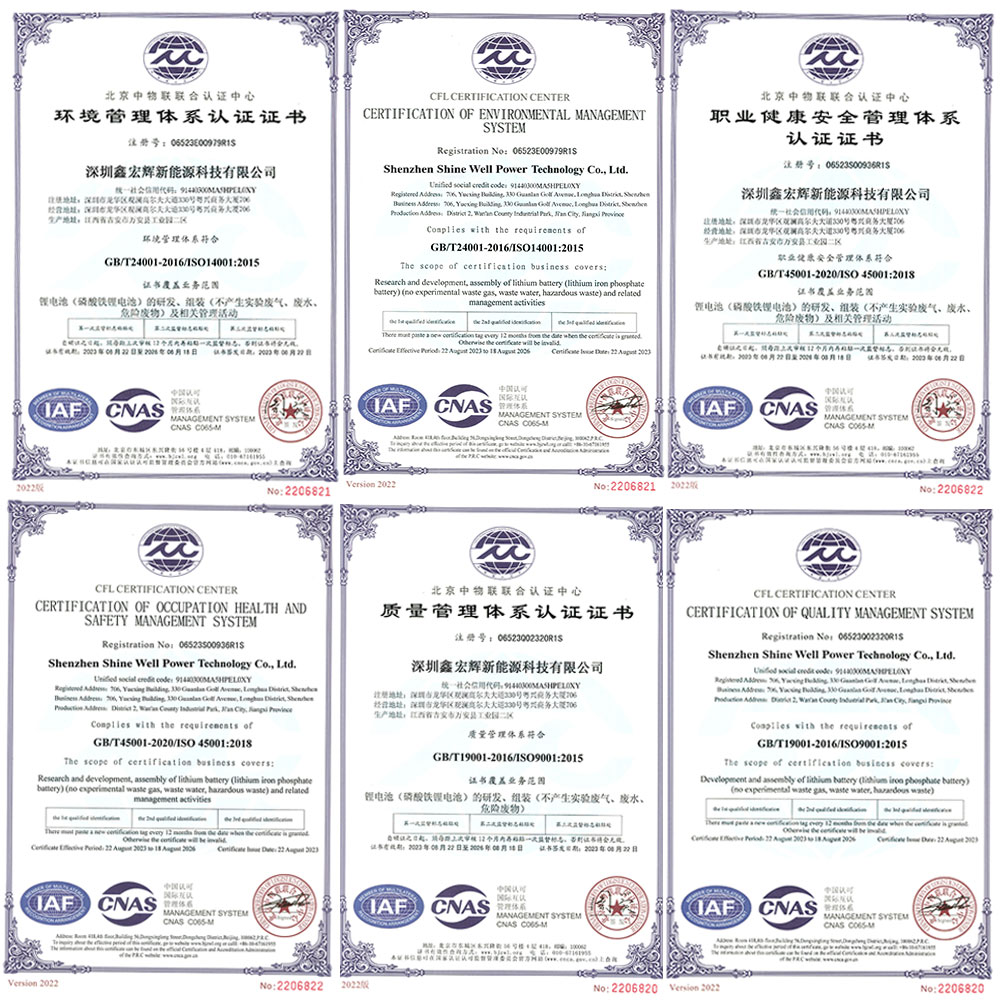

| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | Yes | |
2. Features:
Product Name: Wall Mounted Battery Storage
Mounting Method: Wall Mounted
Color: Black
Working Temperature: -20℃~+50℃
Installation: Easy Installation
Storage Temperature: -20℃~+50℃
Solar Energy Storage System
Power Wall Storage System
3. Technical Parameters:
| Product Name | Wall Mounted Battery Storage |
|---|---|
| Color | Black |
| Size | Customizable |
| Storage Temperature | -20℃~+50℃ |
| Warranty | 5 Years |
| Protection Level | IP65 |
| Capacity | Customizable |
| Material | Aluminum Alloy |
| Mounting Method | Wall Mounted |
| Life Cycle | Over 6000 Times |
| Salor Energy Storage System | Yes |
| Power Wall Energy System | Yes |
| Solar Energy Battery Storage | Yes |
4. Applications:
SWP Wall Mounted Battery Storage: Outdoor Power Wall Storage System for Easy Installation
SWP Wall Mounted Battery Storage provides a reliable, high-performance outdoor power wall storage system that can be easily installed. This system, with model number SWP-48100RM, is made in China and features customizable capacity, over 6000 cycles of life cycle, and IP65 protection level. It is ideal for home, office, and commercial applications.
The unique features of theSWP Wall Mounted Battery Storage include its easy installation, long-lasting life cycle, and robust IP65 protection level. It is perfect for powering any outdoor electrical equipment and devices, such as solar panels, electric vehicles, and other energy-efficient devices. This wall-mounted battery storage system is also designed to be compatible with a wide range of other power sources, such as wind turbines, generators, and fuel cells. The installation process is simple and fast, and the system offers a secure and reliable power supply for any outdoor application.
SWP Wall Mounted Battery Storage is the perfect solution for an efficient, reliable, and secure power source for any outdoor application. With customizable capacity, over 6000 cycles of life cycle, and IP65 protection, this system offers a powerful and reliable power source for any outdoor application. It is also designed for easy installation and is compatible with a wide range of other power sources.
5. Customization:
Customized Wall Mounted Battery Storage from Salor Energy Storage System Manufacturer
Brand Name: SWP
Model Number: SWP-48100RM
Place of Origin: China
Size: Customizable
Voltage: Customizable
Storage Temperature: -20℃~+50℃
Product Name: Wall Mounted Battery Storage
Application: intdoor
Salor Energy is a leading manufacturer of power wall storage systems, providing customized wall mounted battery storage solutions tailored to your needs. Our Salor Energy Battery Storage System is perfect for outdoor applications with its wide temperature range of -20℃~+50℃.
6. Support and Services:
Wall Mounted Battery Storage Technical Support & Services
At [COMPANY NAME], we are committed to providing our customers with the highest level of technical support and service for our Wall Mounted Battery Storage products. Our experienced technical team is available to provide our customers with the following services:
Assistance with installation and setup
Troubleshooting and repairs
Product updates and maintenance
Help with product customization
Technical advice and guidance
If you have any questions or require technical assistance with our Wall Mounted Battery Storage products, please don’t hesitate to contact us.
7. Packing and Shipping:
Packaging and Shipping for Wall Mounted Battery Storage
The wall mounted battery storage should be packaged in a box or a bag with bubble wrap and other protective material.
The package should be labeled clearly with the name of the product and other necessary information such as weight, size, etc.
The package should be securely sealed and ready for shipping.
The package should be shipped using a reliable courier service with tracking information.
8. FAQ:
Q1: What is the brand and model number of the Wall Mounted Battery Storage?
A1: The brand is SWP and the model number is SWP-48100RM.
Q2: Where is Wall Mounted Battery Storage manufactured?
A2: Wall Mounted Battery Storage is manufactured in China.
Q3: What is the capacity of the Wall Mounted Battery Storage?
A3: The capacity of the Wall Mounted Battery Storage is 48V100Ah.
Q4: What type of batteries does the Wall Mounted Battery Storage use?
A4: The Wall Mounted Battery Storage uses lithium-ion batteries.
Q5: Does the Wall Mounted Battery Storage come with any accessories?
A5: Yes, the Wall Mounted Battery Storage comes with a wall mounting bracket and a BMS.
