High Volotage stackable battery system has many advantages, such as such as increased energy density, improved power-to-weight ratio, enhanced efficiency, reduced current requirements, compatibility with high-power applications, and ease of system integration. These advantages make them a favorable choice for various applications, particularly those that require higher power and energy storage capabilities.
1. Product Description:

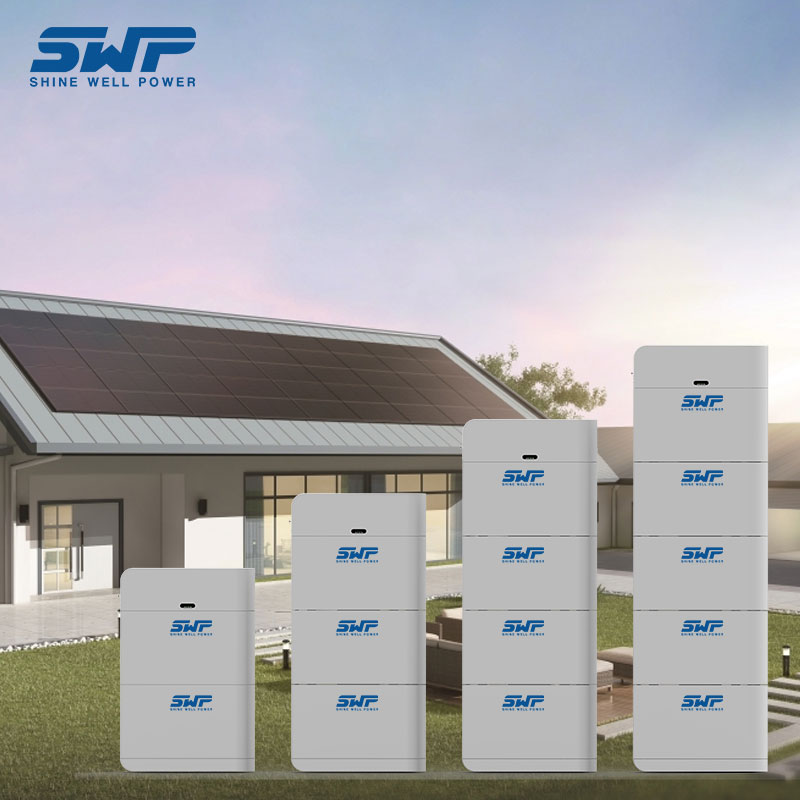

SWP Modular Battery Storage represents an exciting advancement in the realm of residential solar battery storage. Its innovative modular design, coupled with its commitment to safety, efficiency, and reliability, makes it an appealing choice for homeowners. The system's straightforward installation and configuration process offer a notable advantage, reducing both complexity and setup time.
The option of a robust metal construction and a selection of colors, including black and white, ensures seamless integration of the battery storage with diverse home aesthetics. This adaptability appeals to homeowners who value both functionality and visual harmony in their energy storage solution.
With a charge/discharge rate ranging from 0.5C to 1C, the battery can be effectively charged or discharged at a moderate speed relative to its capacity. This feature optimizes the battery's performance and promotes efficient energy utilization.
Furthermore, the inclusion of a 5-year warranty provides homeowners with peace of mind, indicating the manufacturer's confidence in the product's quality and durability. This warranty duration aligns with industry standards and offers reasonable assurance of reliable performance during the initial years of use.
In summary, the SWP Modular Battery Storage holds promise as an appealing option for homeowners seeking to reduce reliance on the grid and achieve long-term cost savings. By investing in this energy storage solution, homeowners can actively contribute to the revolution in residential solar battery storage while enjoying the benefits of sustainable and economically sound energy consumption.
Model | SWP-HV20450ST | SWP-HV30750ST | SWP-HV40950ST | SWP-HV51250ST |
Nominal Voltage | 204.8V(64S) | 307.2V(96S) | 409.6V(128Serious) | 512V(160Serious) |
Cellmodel/Configuration | 3.2V50Ah(ANC)32S1P/102.4V50Ah/5.12Kwh | |||
Capacity(Ah) | 50Ah | |||
Rated Energy (KWH) | 10.24Kwh | 15.36Kwh | 20.48Kwh | 25.6Kwh |
Usable Energy(Kwh) | 9.21Kwh | 13.82Kwh | 18.43Kwh | 23.04Kwh |
Max Charge / Discharge Current | 25A / 50Ah | |||
VoltageRange(Vde) | 180~228V | 270~340V | 350~450V | 440~460V |
Scalability | Up To 4 Parallet | |||
Communication | Rs232-PC.RS485-Inverter.Canbus-Inventer | |||
Cycle Life | ≥6000Cycles @25℃90% DOD 60% EOL | |||
Design Life | ≥15 Years(25℃) | |||
Mechanical Specification
Weight(Approx)(KG) | Approx:130Kg | Approx:180Kg | Approx:230Kg | Approx:280Kg |
Dimension(W/D/H)(mm) | 636*185*1065 | 636*185*1418 | 636*185*1770 | 636*185*2122 |
InstallationMode | Stack | |||
IPGrade | IP65 | |||
Security Anderson Certification
Safety(Pack) | UN38 .3 , MSDS , IEC62619(CB) ,CE- EMC |
Safety(Cell) | UN38 .3 , MSDS , IEC62619(CB) ,UL1973,UL2054 |
Protection | BMS Breaker |
Environmental Specifications | |
OperatingTemperature | Charge:-10℃；Discharge -20℃-50℃ |
Altitude(M) | ≤2000 |
Humidity | ≤95(Non-Condensing) |
2. Features:
Product Name: Stackable Battery Storage
Capacity: 50Ah
Warranty: 5 Years
Charge/Discharge Rate: 0.5C~1C
Cycle Life: ≥6000
Home Storage Battery
Commercial Battery Storage Systems
Battery Energy Storage System
3. Applications:
The Stackable Battery Storage system is a reliable energy storage solution for households. Developed by SWP-HV40950ST, it offers a stackable battery system with UL, MSDS, UN38.3, and CE certifications. It has a minimum order quantity of 100 and comes with a 5 year warranty. The Stackable Battery Storage system has a black and white color option and a charge/discharge rate of 0.5C~1C and a capacity of 50Ah. It is the perfect energy storage solution for households, providing a reliable and efficient storage system with a delivery time of 25 days.
4. Customization:
Customized Stackable Battery Storage System
Brand Name: Stackable Battery System
Model Number: SWP-HV40950ST
Place of Origin: China
Certification: UL, MSDS, UN38.3, CE
Minimum Order Quantity: 100
Delivery Time: 25 days
Material: Metal
Color: Black / White
Warranty: 5 Years
Cycle Life: ≥6000
Product Name: Stackable Battery Storage
Application: Home Energy Storage Battery, Household Battery Storage, Domestic Battery Energy Storage
5. Support and Services:
Stackable Battery Storage Technical Support and Service
We provide full technical support and service for our Stackable Battery Storage products. Our team of dedicated engineers and technicians are available to answer any questions you may have regarding the product, its installation and use.
Product Installation and Maintenance
We provide installation and maintenance services for our Stackable Battery Storage products. Our experienced technicians can help you install, configure, and maintain your system to ensure optimal performance.
Technical Support
We provide technical support for our Stackable Battery Storage products. Our technical support team is available 24 hours a day, 7 days a week to answer any questions you may have about the product. We also provide troubleshooting assistance and can help you diagnose any problems you may be having.
Product Warranty
We provide a limited warranty for our Stackable Battery Storage products. Our warranty covers manufacturing defects and workmanship and is valid for 12 months from the date of purchase. Please refer to your product documentation for more information.
6. Packing and Shipping:
Packaging and Shipping
Stackable Battery Storage is shipped in a heavy-duty corrugated box, with an inner protective foam layer, and an outer cardboard layer. All necessary components, such as mounting hardware and installation instructions, are included in the packaging.
For international shipping, the product is wrapped in a waterproof bag for added protection against moisture and water damage. The box is then secured with heavy-duty plastic packing tape.
FAQ:
Q: What is the brand name and model number of the Stackable Battery Storage?
A: The brand name is Stackable Battery System and the model number is SWP-HV40950ST.
Q: Where does the Stackable Battery Storage originate from?
A: The Stackable Battery Storage is from China.
Q: What certifications does the Stackable Battery Storage have?
A: The Stackable Battery Storage has UL, MSDS, UN38.3 and CE certifications.
Q: What is the minimum order quantity?
A: The minimum order quantity is 100.
Q: How long does delivery of the Stackable Battery Storage take?
A: Delivery takes 25 days.
