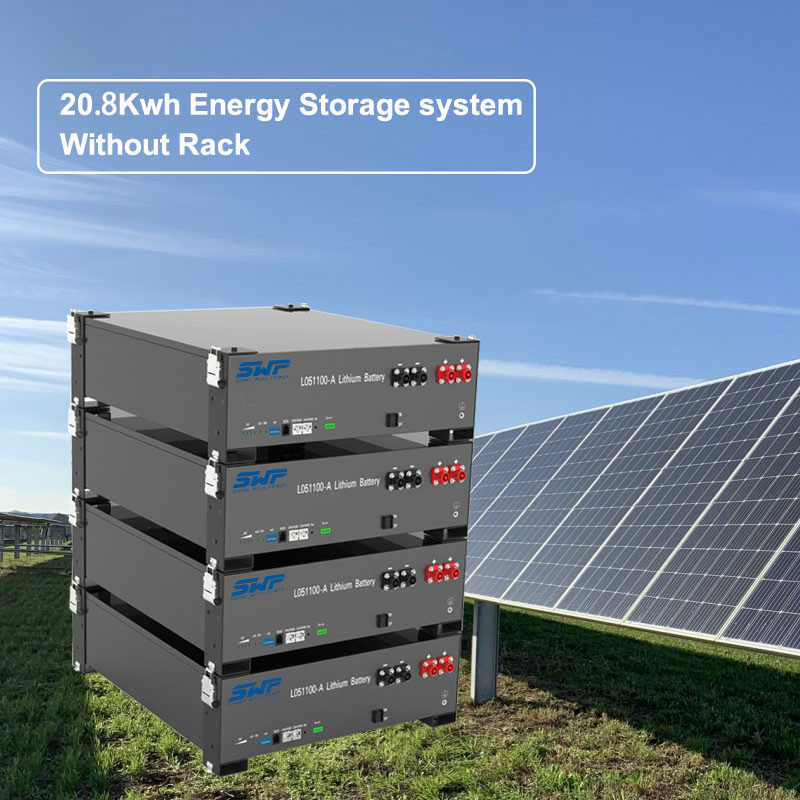

48V150Ah Cabinet battery can be stackable directly, no need drawer box. This home energy storage can save the drawer box cost for the client, Installation is also relatively simple, with interlocking fixtures between each battery set, ensuring stability and reliability.
Wall-Mounted Home Battery Energy Storage System Featuring CAN Communication Interface
Introducing The Home Battery Energy Storage System – The Ultimate Energy Storage Solution For Your Home. The System Offers A 5-20kWh Capacity And Is Designed To Provide You With A Reliable, Safe And Efficient Energy Storage Option. It Is Compatible With A Wide Range Of Inverters And Comes With A Number Of Advanced Safety Features, Such As Overcharge, Overdischarge, Overcurrent, Short Circuit And Temperature Protection, To Ensure Your Energy Storage System Is Up And Running And Running Safely. Supporting A Voltage Of 51.2V, And Operating At Temperatures Ranging From -20℃ To 50℃, The Home Battery Storage System Is The Perfect Fit For Households Looking For An Energy Storage Solution That Is Reliable, Safe And Efficient. Make The Switch For Your Household Energy Needs Today And Enjoy The Benefits Of Home Battery Storage Systems – The Energy Storage Solution Of Choice For Households.
| SWP48100-RM House Energy Storage System | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 48 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |

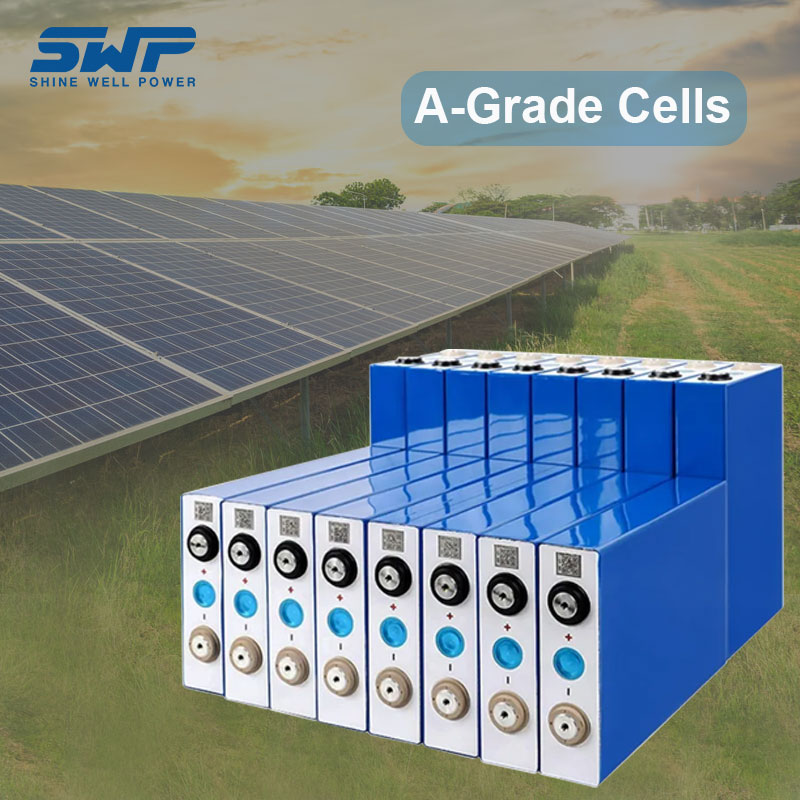

| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 2000 times when DOD is 100%. The cycle life shall not be less than 4000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). | |
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
Product Name: Home Battery Energy Storage System
Warranty: 5years
Remote Monitoring System: Yes
Voltage: 51.2V
Installation Method: Wall-mounted, Floor-mounted
Operating Temperature: -20℃~50℃
Home Solar Battery Storage
Home Energy Storage Batteries
Household Battery Storage System
| Parameter | Specification |
|---|---|
| Battery Management System | Yes |
| Capacity | 5-20kWh |
| Warranty | 5years |
| Installation Method | Wall-mounted, Floor-mounted |
| Voltage | 51.2V |
| Cycle Life | 5000-8000 |
| Compatible Inverter | Yes |
| Communication Interface | RS232,RS485, CAN |
| Safety Protection | Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
| Remote Monitoring System | Yes |
SWP Home Battery Energy Storage System Is Designed To Provide A Solution For Household Energy Storage Needs. With SWP-48100RM Model, It Has A Capacity Of 5-20kWh, Operating Temperature Range Of -20℃~50℃, A Cycle Life Of 5000-8000, And A Power Of 3-10kW. The System Is Easy To Install, With Both Wall-Mounted And Floor-Mounted Options Available. This Battery System Is Reliable And Efficient, Perfect For Your Household Energy Storage Needs.
By Using The SWP Home Battery Energy Storage System, You Can Save Energy And Reduce Your Electricity Bills. The System Stores Energy During Off-Peak Hours When Electricity Is Cheaper. You Can Then Use The Stored Energy During Peak Hours When Electricity Is More Expensive. This Will Help You Reduce Your Electricity Bills And Maximize Your Savings.
The SWP Home Battery Energy Storage System Is Also A Great Choice For Households Looking To Become Energy Independent. With This System, You Can Store Excess Energy Generated From Renewable Sources Such As Solar Or Wind. This Will Provide You With A Reliable Source Of Energy, Even When The Grid Is Down. The System Also Helps Reduce Carbon Emissions, Making It A Great Choice For Households Looking To Reduce Their Environmental Impact.
The SWP Home Battery Energy Storage System Is An Excellent Choice For Households Looking For A Reliable And Efficient Energy Storage Solution. With Its High Capacity, Long Cycle Life, And Easy Installation, This System Is Perfect For Your Energy Storage Needs.
Brand Name: SWP
Model Number: SWP-48100RM
Place of Origin: China
Battery Management System: Yes
Operating Temperature: -20℃~50℃
Power: 3-10kW
Compatible Inverter: Yes
Safety Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection
We Provide Customized Service For Home Battery Energy Storage System, Such As Household Battery Storage And Home Energy Storage Battery. All Of Our Products Are Branded SWP And The Model Number Is SWP-48100RM. Our Products Come From China And Have Battery Management System, Operating Temperature Range -20℃~50℃, Power 3-10kW, Compatible Inverter And Safety Protection.
At XYZ, We Provide Excellent Technical Support And Service For Our Home Battery Energy Storage System. We Are Committed To Helping Our Customers Get The Most Out Of Their Energy Storage System And Ensure That It Is Functioning As Intended.
Our Team Of Experienced Professionals Is Available To Provide Technical Support On All Aspects Of Our Home Battery Energy Storage System. We Will Answer Any And All Questions Related To The Installation, Operation, And Maintenance Of The System. Furthermore, We Are Available To Provide Troubleshooting Advice And Technical Support In The Event Of Any Issues Or Problems.
For Any Additional Customer Service Inquiries, Our Customer Service Team Is Available To Assist. We Provide A Wide Range Of Services Including Product Information, Warranty Information, And Ordering Assistance. Our Knowledgeable Staff Can Also Answer Any Questions Related To The Installation And Mainten
Ance Of The System.
The Home Battery Energy Storage System Is Securely Packaged In Custom Designed Packaging To Ensure The Product And Its Components Are Not Damaged During The Transportation Process. Delivery Of The Home Battery Energy Storage System Will Be Made Using A Reliable And Safe Third-Party Shipping Provider.
Q: What is the brand name of the Home Battery Energy Storage System?
A: The brand name of the Home Battery Energy Storage System is SWP.
Q: What is the model number of the Home Battery Energy Storage System?
A: The model number of the Home Battery Energy Storage System is SWP-48100RM.
Q: Where is the Home Battery Energy Storage System manufactured?
A: The Home Battery Energy Storage System is manufactured in China.
Q: What kind of batteries does the Home Battery Energy Storage System use?
A: The Home Battery Energy Storage System uses lithium-ion batteries.
Q: How long does the Home Battery Energy Storage System take to charge?
A: The Home Battery Energy Storage System takes approximately 6 to 8 hours to fully charge.
