As a factory, SWP specialize in the research, development, manufacturing, and sales of energy storage systems.Maximize your energy efficiency and reduce your reliance on the grid with our cutting-edge home energy storage system. Our reliable and compact solution allows you to store excess energy generated by your solar panels or during off-peak hours, ensuring uninterrupted power supply during outages or high-demand periods. Take control of your energy usage, save on utility bills, and contribute to a sustainable future with our advanced home energy storage system. Learn more today!"

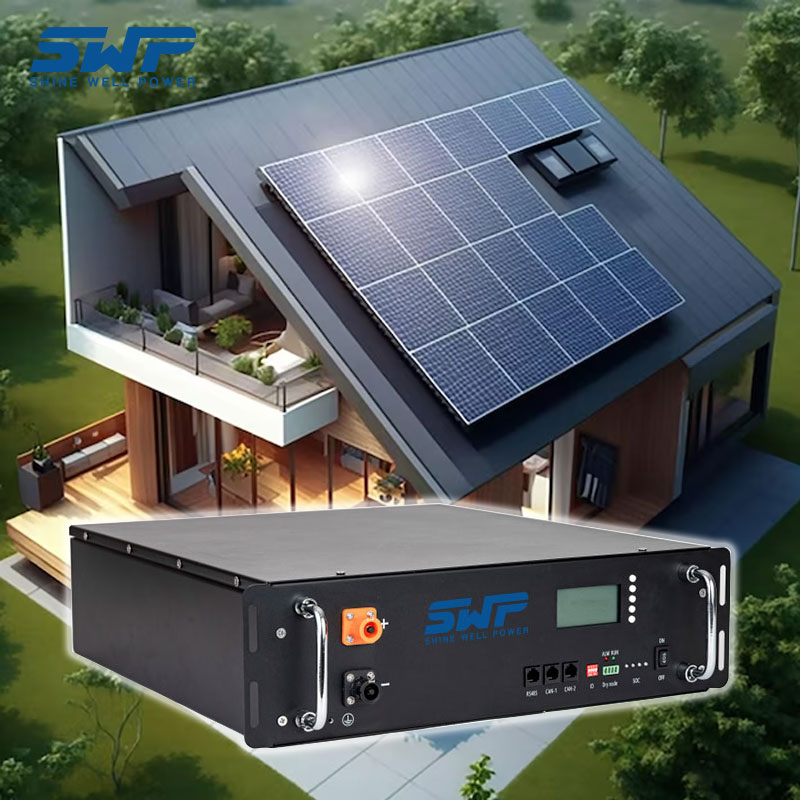

51.2V 60Ah Home Battery Storage System 5-20kWh Bms Safety Protection
51.2V 60Ah Solar Battery 5-20kWh Bms Battery Management System 51.2V For Home Battery Energy Storage
Product Description:
The Home Battery Energy Storage System Offers A Reliable Solution For Storing Energy In Your Home, Providing Access To Stored Power As Needed. This System Is Designed With Safety As A Top Priority, Featuring High-Voltage Battery Packs, A Power Wall Battery, And An Advanced Battery Management System With Safeguards Such As Overcharge, Overdischarge, Overcurrent, Short Circuit, And Temperature Protection. With A Broad Operating Temperature Range Of -10℃ To 40℃, It Is Compatible With A Wide Range Of Inverters And Is Engineered For A Long Cycle Life Of Approximately 4,000-6,000 Cycles. The Integrated Battery Management System Ensures The Safety And Reliability Of Your Energy Storage System, Giving You Peace Of Mind.
Efficient Energy Management: The Home Battery Energy Storage System Enables Efficient Management Of Energy In Your Home. It Allows You To Store Excess Energy Generated By Solar Panels Or During Off-Peak Hours And Use It When Electricity Demand Is High Or During Power Outages. This Helps Optimize Energy Usage And Reduce Reliance On The Grid.
Demand Response Capabilities: The System Can Be Integrated With Smart Grid Technology, Enabling Participation In Demand Response Programs. During Peak Demand Periods, When Electricity Prices Are High, The System Can Automatically Adjust Energy Usage To Reduce Costs. This Feature Allows Homeowners To Take Advantage Of Time-Of-Use Pricing And Maximize Savings.
Expandable Storage Capacity: The Home Battery Energy Storage System Is Designed To Be Expandable. If Your Energy Storage Needs Increase In The Future, Additional Battery Modules Can Be Easily Added To Increase The Storage Capacity. This Flexibility Allows You To Adapt The System To Your Changing Energy Requirements.
Remote Monitoring And Control: Many Home Battery Energy Storage Systems Offer Remote Monitoring And Control Capabilities. You Can Monitor The Performance Of Your System, Track Energy Usage, And Receive Alerts Or Notifications Through A Mobile App Or Web Portal. This Feature Provides Convenient Access To Real-Time Data And Allows You To Optimize Your Energy Usage.
Grid Independence And Resilience: With A Home Battery Energy Storage System, You Can Achieve A Certain Level Of Grid Independence. During Power Outages Or Grid Disruptions, The System Can Provide Backup Power, Ensuring Continuity For Essential Loads In Your Home. This Resilience Is Particularly Valuable In Areas Prone To Blackouts Or Unreliable Grid Supply.
Environmental Benefits: By Storing And Utilizing Excess Energy, The Home Battery Energy Storage System Promotes The Use Of Renewable Energy Sources. It Reduces Reliance On Fossil Fuel-Based Electricity And Contributes To A More Sustainable And Environmentally Friendly Energy System.
Warranty And Support: Home Battery Energy Storage Systems Typically Come With Warranties To Guarantee Their Performance And Reliability. Manufacturers And Suppliers Usually Provide Customer Support To Assist With System Installation, Maintenance, And Any Troubleshooting That May Be Required.
Overall, The Home Battery Energy Storage System Offers Efficient Energy Management, Expandable Storage Capacity, Remote Monitoring And Control, Grid Independence, Environmental Benefits, And Warranty And Support. It Is A Valuable Addition To A Home's Energy Infrastructure, Providing Greater Control, Resilience, And Sustainability In Energy Usage.
| SWP5160-RM | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 60Ah | |

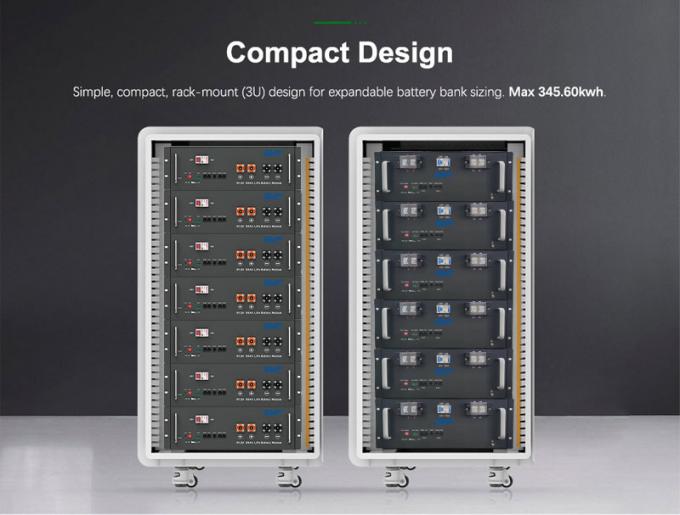

| Parallel Connection | Max. 16 units | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 30A | |
| Fast Current | 60A | |
| Discharge Specifications | Standard Current | 60A |
| Max.Con.Discharge | 120A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 35 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |
| Cells Type | ANC 3.2V60Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 2000 times when DOD is 100%. The cycle life shall not be less than 4000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). | |
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
Product Name: Home Battery Energy Storage System
Warranty: 5years
Safety Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection
Battery Management System: Yes
Voltage: 51.2V
Cycle Life: 5000-8000
| Product Attribute | Description |
|---|---|
| Remote Monitoring System | Yes |
| Compatible Inverter | Yes |
| Installation Method | Wall-mounted, Floor-mounted |
| Capacity | 5-20kWh |
| Power | 3-10kW |
| Application | Residential, Commercial |
| Battery Management System | Yes |
| Safety Protection | Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
| Warranty | 5years |
| Operating Temperature | -20℃~50℃ |
| Storage System Battery | HV Battery Pack |
| Commercial Energy System | Yes |
| Intelligent BMS | Yes |

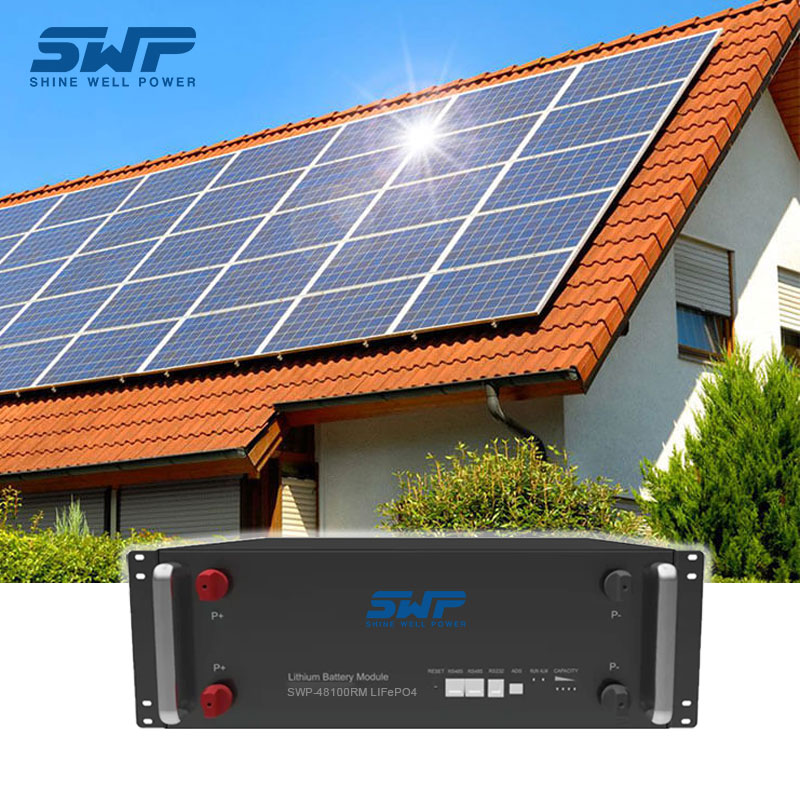

SWP Is A Leading Brand In The Commercial Energy System, Providing Home Energy Storage System With Outstanding Performance And Reliability. The SWP-4860RM Is An Ideal Power Wall Battery For Both Residential And Commercial Applications. Featured With Advanced Safety Protection Such As Overcharge, Overdischarge, Overcurrent, Short Circuit, And Temperature Protection, This Battery Ensures You A Secure And Long-Term Energy Storage Solution. With A Voltage Of 51.2V And A Power Of 3-10kW, The SWP-48100RM Is Also Perfectly Compatible With Any Inverter.
Brand Name: SWP
Model Number: SWP-48100RM
Place Of Origin: China
Safety Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection
Power: 3-10kW
Battery Management System: Yes
Warranty: 5years
Voltage: 51.2V
The SWP Home Battery Energy Storage System Is A Highly Advanced, Reliable, And Safe House Energy Storage System, Specifically Designed For All Kinds Of Residential Application. It Features A Salor Battery Storage System With Safety Protection Features Such As Overcharge, Overdischarge, Overcurrent, Short Circuit, And Temperature Protections. The System Provides Power From 3-10kW, And Is Equipped With A Battery Management System For Optimal Performance And Security. With A Voltage Of 51.2V, And A 5-Year Warranty, The SWP Home Battery Energy Storage System Is A Reliable Choice For Your Home Energy Storage Needs.
24/7 remote technical support and service
On-site service and installation
Comprehensive warranty coverage
Regular maintenance and updates
Access to customer service representatives
Replacement parts and components
Expert advice and troubleshooting
Our Home Battery Energy Storage System Comes In An Easy-To-Carry Box. It Is Carefully Packaged To Ensure That The Product Arrives Undamaged. We Use Corrugated Cardboard Boxes With Shock-Absorbing Foam To Protect The Product From Impact During Transportation.
We Ship The Home Battery Energy Storage System Using Reliable And Safe Courier Services. Our Products Are Delivered To Customers Within 5-7 Days, Depending On The Destination. We Also Offer Express Shipping For Customers Who Need Their Products Delivered Faster.
Q:What is the brand name of Home Battery Energy Storage System?
A:The brand name of Home Battery Energy Storage System is SWP.
Q:What is the model number of Home Battery Energy Storage System?
A:The model number of Home Battery Energy Storage System is SWP-48100RM.
Q:Where is the Home Battery Energy Storage System manufactured?
A:The Home Battery Energy Storage System is manufactured in China.
Q:What types of connection can be used with Home Battery Energy Storage System?
A:The Home Battery Energy Storage System can be connected through AC or DC cables.
Q:What is the power capacity of Home Battery Energy Storage System?
A:The Home Battery Energy Storage System has a power capacity of 48100 watts.
