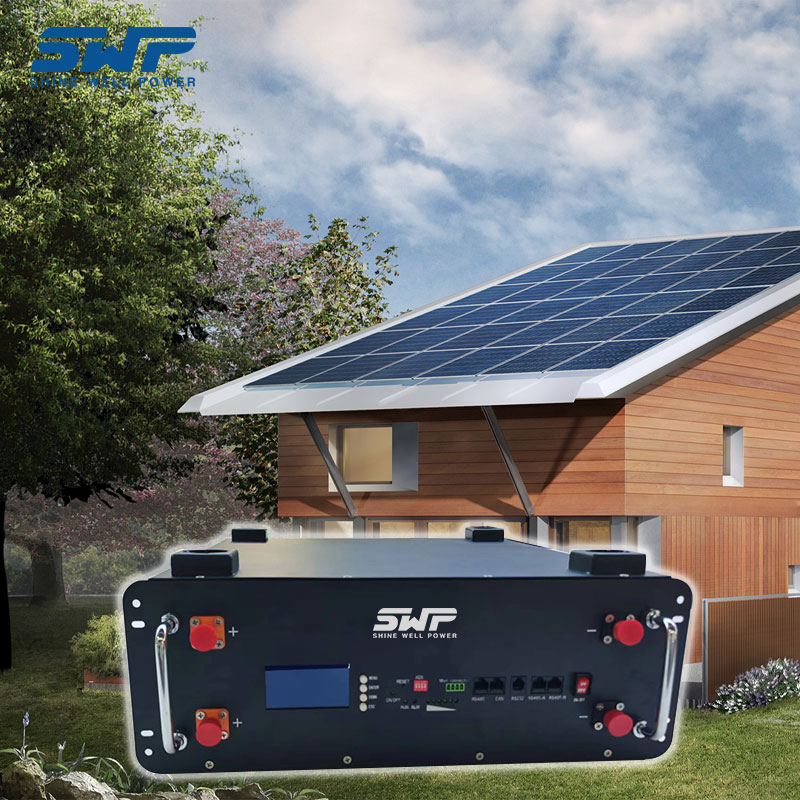

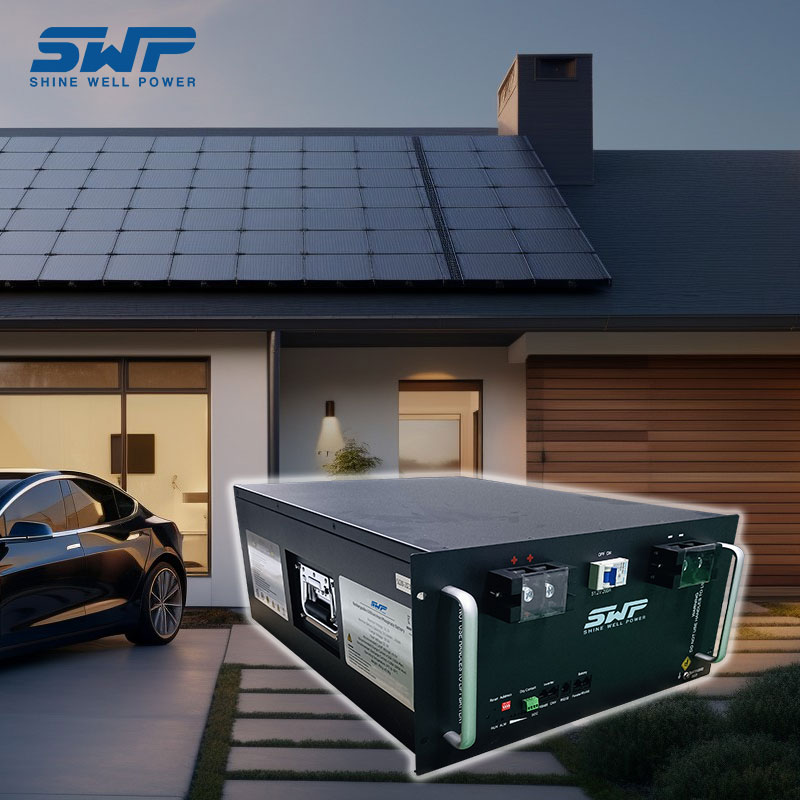

The 51.2V 200Ah drawer-style home energy storage battery system is widely used, easy to install, and compatible with most energy storage battery inverters available in the market. It offers stable performance, high conversion efficiency, and reliable safety features.
512.V 200Ah Battery Management System Included Home Solar Battery Storage System For -20C-50C Environments
SWP Home Energy Storage Systems Primarily Store Surplus Electricity Generated By Solar Panels In Battery Packs, Providing Convenient Access For Households At Any Time. During Periods Of Adequate Sunlight, Solar Photovoltaic Modules Generate An Excess Of Energy, Which Can Be Stored In The Batteries To Ensure A Continuous Electricity Supply On Cloudy Or Rainy Days, As Well As During Nighttime Hours.
The Ability Of Batteries To Optimize Electricity Usage Plays A Crucial Role In Maintaining The Effective Operation Of The Entire Household Energy System. By Storing And Efficiently Utilizing The Excess Energy, Homeowners Can Minimize Their Reliance On The Grid And Maximize Self-Consumption Of Solar Power.
Moreover, Home Energy Storage Systems Offer The Added Benefit Of Providing Backup Power During Unexpected Disruptions To The Household Electricity Supply. In Situations Such As Sudden Power Outages, The Energy Stored In The Battery System Can Be Swiftly Deployed To Maintain Continuity. This Is Particularly Valuable For Preserving Important Computer Files, Preventing Food Spoilage In Refrigerators, And Ensuring The Uninterrupted Operation Of Critical Household Appliances.
Additionally, These Systems Exhibit A Remarkably Short Response Time, Enabling A Seamless Transition From Grid Electricity To Battery Power. This Swift Response Ensures That Essential Devices And Appliances Remain Powered, Minimizing Inconvenience And Facilitating Normal Household Operations During Power Interruptions.
In Summary, Home Energy Storage Systems Enable Households To Store Surplus Solar-Generated Electricity For Later Use, Ensuring A Reliable And Continuous Power Supply. They Optimize Electricity Usage, Provide Backup Power During Outages, And Offer A Rapid Response Time To Uphold The Effective Operation Of The Entire Household Energy System.
| SWP51200-RM House energy storage system | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S200A | |

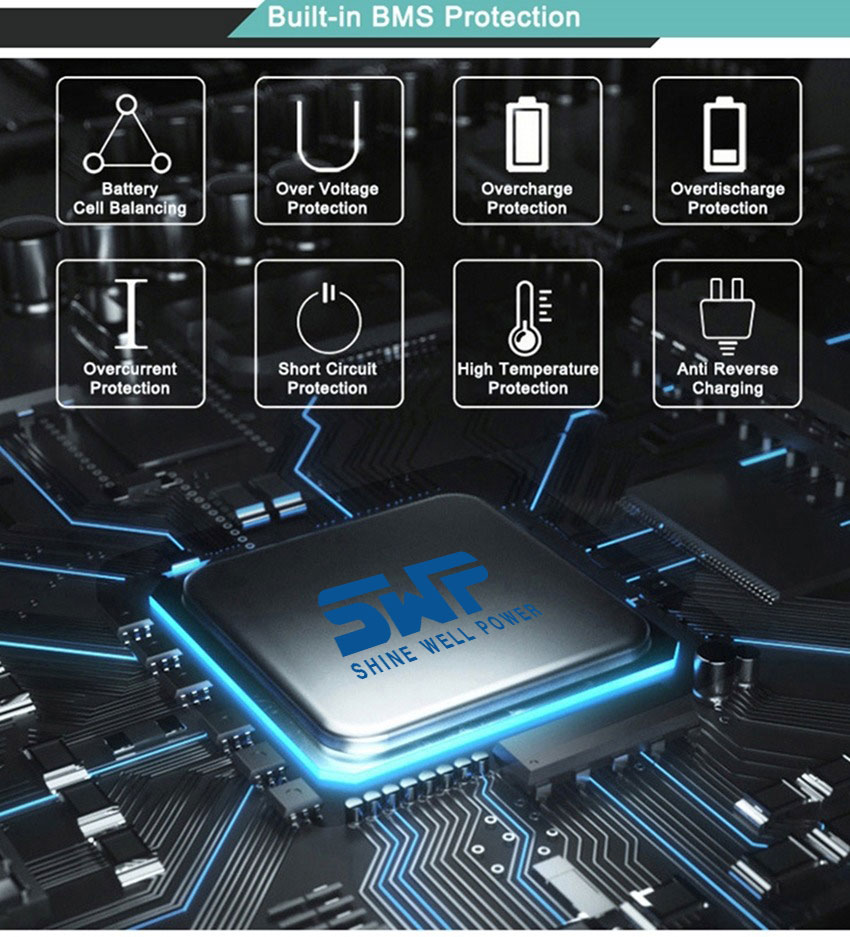

| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 100A | |
| Fast Current | 200A | |
| Discharge Specifications | Standard Current | 200A |
| Max.Con.Discharge | 300A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 85 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |
| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 3000 times when DOD is 100%. The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). | |
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
Product Name: Home Battery Energy Storage System
Cycle Life: 5000-8000
Safety Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection
Installation Method: Wall-mounted, Floor-mounted
Warranty: 5years
Communication Interface: RS232,RS485, CAN
Home Storage Battery, Home Energy Battery, Home Solar Battery Storage System
| Technology Parameter | Description |
|---|---|
| Home Lithium Storage Battery | Yes |
| Remote Monitoring System | Yes |
| Communication Interface | RS232, RS485, CAN |
| Warranty | 5 Years |
| Operating Temperature | -20℃~50℃ |
| Battery Management System | Yes |
| Application | Residential, Commercial |
| Capacity | 5-20kWh |
| Compatible Inverter | Yes |
| Safety Protection | Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
| Power | 3-10kW |
The SWP Home Battery Energy Storage System Is The Ideal Energy Storage Solution For Residential And Commercial Applications. This Powerful System Comes With A 5-Year Warranty, And It Is Available In Wall-Mounted And Floor-Mounted Formats. With Its 3-10kW Power Output, The SWP-48100RM Can Be Used To Store Energy Efficiently For Up To 5000-8000 Cycles. This Energy Storage Battery Is Perfect For Those Looking For An Efficient And Reliable Household Battery Storage System.
Brand Name: SWP
Model Number: SWP-48200RM
Place of Origin: China
Power: 3-10kW
Remote Monitoring System: Yes
Operating Temperature: -20℃~50℃
Warranty: 5years
Battery Management System: Yes
This Home Battery Energy Storage System Is The Perfect Choice For Your Home Solar Energy Storage Needs. SWP-48100RM Has A Power Range Of 3-10kW, And An Operating Temperature Range Of -20℃~50℃. It Is Equipped With A Remote Monitoring System And A Battery Management System For Easy Operation. It Is Also Backed By A 5-Year Warranty. This Home Solar Battery Storage System Is The Ultimate Battery Energy Storage Station For Your Home.
We Provide Technical Support And Services For Our Home Battery Energy Storage System Products. Our Team Of Technical Experts Are Available To Help You With Any Queries Or Issues You May Have.
We Provide Technical Advice And Troubleshooting Assistance For Installation, Operation, Maintenance And Repair Of Our Home Battery Energy Storage System Products. We Also Have Online Resources Such As User Manuals, Instructional Videos And FAQs To Help You Get The Most Out Of Your Home Battery Energy Storage System.
If You Need Further Assistance, Our Technical Team Is Available To Help. We Provide Phone, Email And Live Chat Support During Regular Business Hours. We Also Offer Extended Hours Support For Urgent Matters.
At Home Battery Energy Storage System, We Take Pride In Providing Quality Technical Support And Services To Our Customers.
Packaging And Shipping For Home Battery Energy Storage System:
Carefully package the system in its original box.
Securely wrap the box with bubble wrap, ensuring that all parts are well protected.
Label the box with the customer's name and address.
Ship the box with a trusted and reputable courier such as FedEx, UPS or DHL.
Q: What is the brand name of this Home Battery Energy Storage System?
A: The brand name of this Home Battery Energy Storage System is SWP.
Q: What is the model number of this Home Battery Energy Storage System?
A: The model number of this Home Battery Energy Storage System is SWP-48100RM.
Q: Where is this Home Battery Energy Storage System from?
A: This Home Battery Energy Storage System is from China.
Q: What are the features of this Home Battery Energy Storage System?
A: This Home Battery Energy Storage System has features such as long service life, fast charging and discharging, low self-discharge rate, etc.
Q: What is the capacity of this Home Battery Energy Storage System?
A: The capacity of this Home Battery Energy Storage System is 48100Wh.
