48V100Ah home energy storage product with the highest sales volume and a certain level of recognition in the European energy storage market. We have partnered with renowned manufacturers such as Deeya Energy and Grewatt to incorporate their inverters into our energy storage system, making it simple and convenient to integrate with our system.
1. Product Description:
The Home Battery Energy Storage System Is An Innovative Solution For Storing Energy In Households And Businesses. It Offers A Safe, Cost-Efficient, And Reliable Way To Store Excess Energy. With Its Advanced Technology And High-Quality Components, This System Optimizes Energy Efficiency And Helps Reduce Energy Costs. It Has A Power Output Range Of 7-20kW And Operates At A Voltage Of 48V. Equipped With A Battery Management System (BMS), It Ensures The Batteries' Safe Operation And Monitors Their Temperature, Charge Level, And Overall Performance. The BMS Also Incorporates Intelligent Features For Scheduling Energy Usage Based On Demand And Electricity Rates, Maximizing Energy Utilization Efficiency.
To Facilitate Seamless Integration With Other Systems, The Home Battery Energy Storage System Features Communication Interfaces Such As RS485 And Wi-Fi. This Enables Easy Connectivity And Allows Users To Monitor And Control The System Remotely Using Their Smartphones Or Computers. The System Also Offers A Comprehensive Remote Monitoring System That Provides Real-Time Data On Energy Production, Consumption, And Battery Status. This Empowers Users To Make Informed Decisions About Their Energy Usage And Optimize Their Overall Energy Management.
In Addition To Optimizing Energy Efficiency, The Home Battery Energy Storage System Provides Reliable Backup Power During Grid Outages. With Its Automatic Switch To Battery Power, It Ensures A Continuous Electricity Supply To Critical Loads, Ensuring Comfort And Safety During Emergencies.
Overall, The Home Battery Energy Storage System Is A Cutting-Edge Energy Storage Solution For Both Residential And Commercial Applications. With Its Advanced Technology, Intelligent Features, And Reliable Performance, It Offers A Safe, Cost-Effective, And Efficient Option For Storing And Managing Energy.
| SWP48100-RM House Energy Storage System | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 48 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |
| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 2000 times when DOD is 100%. The cycle life shall not be less than 4000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). | |
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
2. Features:
Product Name: Home Battery Energy Storage System
Battery Management System: Yes
Power: 3-10kW
Compatible Inverter: Yes
Warranty: 5years
Application: Residential, Commercial
3. Technical Parameters:
| Attributes | Details |
|---|---|
| Installation Method | Wall-mounted, Floor-mounted |
| Voltage | 51.2V |
| Battery Management System | Yes |
| Compatible Inverter | Yes |
| Communication Interface | RS232, RS485, CAN |
| Operating Temperature | -20℃~50℃ |
| Application | Residential, Commercial |
| Warranty | 5years |
| Cycle Life | 5000-8000 |
| Remote Monitoring System | Yes |
4. Applications:

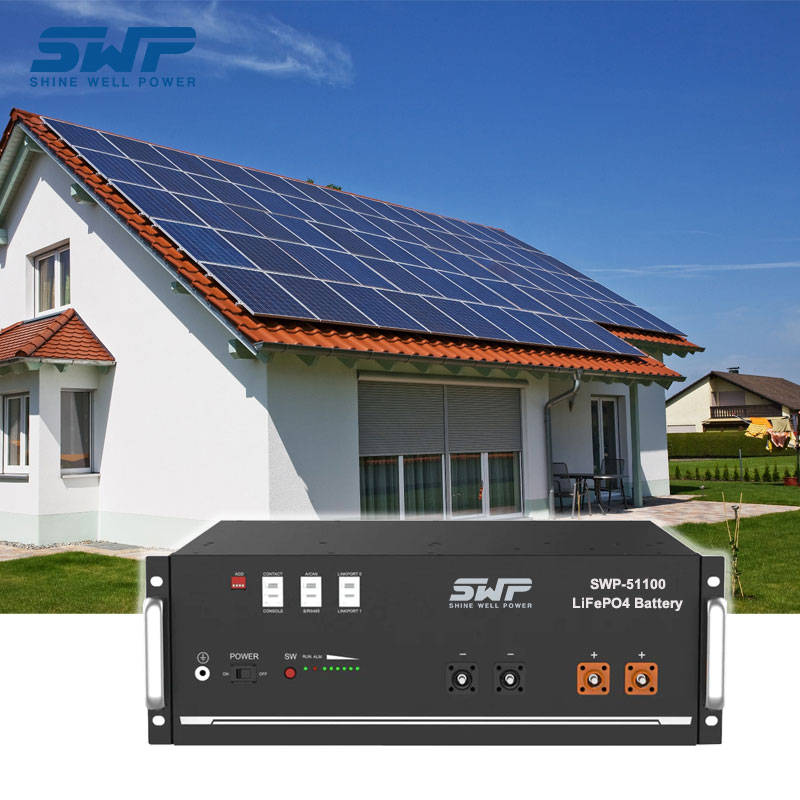

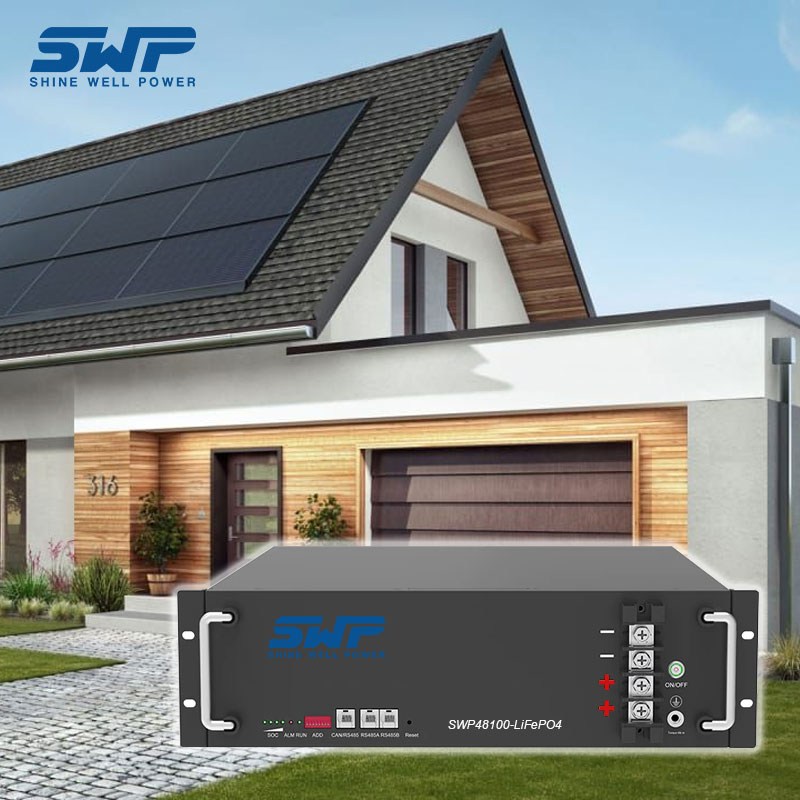

SWP Home Battery Energy Storage System Is A Reliable And Efficient Household Energy Storage System With A Model Number Of SWP-48100RM. Made In China, This System Offers A Capacity Of 5-20kWh And A Voltage Of 51.2V. It Also Features Communication Interfaces Such As RS232, RS485 And CAN, As Well As A Battery Management System, All Of Which Make It An Ideal Home Lithium Storage Battery And Energy Storage Station. Moreover, It Is Designed To Operate Over A Wide Temperature Range Of -20℃~50℃, Making It Suitable For Different Climates.
The SWP Home Battery Energy Storage System Is Designed To Store And Manage Energy From Renewable Sources, Such As Solar And Wind Power. It Is An Ideal Solution For Households Who Want To Take Advantage Of Clean Energy And Reduce Their Dependence On Traditional Sources Of Electricity. It Can Also Provide A Stable And Reliable Source Of Electricity During Peak Hours And Times Of Power Outages.
The SWP Home Battery Energy Storage System Is An Efficient And Cost-Effective Way To Maximize The Use Of Renewable Energy Sources. It Is A Reliable And Secure Way To Store And Manage Energy, Providing A Cost-Effective Solution For Households To Reduce Their Electricity Bills And Lower Their Carbon Footprint.
5. Customization:
Customized Service for Home Battery Energy Storage System
Brand Name: SWP
Model Number: SWP-48100RM
Place Of Origin: China
Remote Monitoring System: Yes
Communication Interface: RS232,RS485, CAN
Power: 3-10kW
Compatible Inverter: Yes
Operating Temperature: -20℃~50℃
Highlight Keywords: Home Energy Battery Storage, Home Energy Battery, Battery Energy Storage Station
Our Home Battery Energy Storage System Is A Perfect Solution For Home Energy Storage, Giving You The Ability To Store Energy And Use It At Your Convenience. It Is Built With A Brand Name Of SWP, Model Number Of SWP-48100RM, And Is Made In China. It Comes With A Remote Monitoring System, Communication Interface Of RS232,RS485, CAN, And Power Of 3-10kW. It Is Compatible With Inverters And Is Able To Operate At Temperatures Of -20℃~50℃.
We Provide Customized Service For Home Battery Energy Storage System, Allowing You To Get The Perfect System For Your Home Energy Storage Needs. With Our System, You Can Trust That You Will Get The Best In Home Energy Storage And Battery Energy Storage Station.
6. Support and Services:
Home Battery Energy Storage System Technical Support and Service
Our Home Battery Energy Storage System Offers Our Customers A Variety Of Technical Support And Service Options. We Provide Comprehensive Support For Installation, Use, And Maintenance Of The System.
Installation: We Provide Our Customers With Detailed Instructions For Installation As Well As The Option To Have A Technician Come To The Home To Perform The Installation. We Also Offer Training To Ensure Customers Are Familiar With The System And Can Safely Install And Use It.
Use: We Are Available To Answer Any Questions Customers May Have About The Use Of The System. We Can Provide Troubleshooting Support And Technical Advice When Needed.
Maintenance: We Offer A Maintenance Plan That Includes Regular Check-Ups And Preventive Maintenance. This Helps To Ensure The System Is Running Optimally And That Any Potential Issues Are Caught And Addressed Quickly.
7. Packing and Shipping:
Packaging and Shipping of Home Battery Energy Storage System
The Home Battery Energy Storage System Will Be Packaged In A Box Designed To Protect The System From Any Potential Damage That May Occur During Shipping. The Box Will Be Made Of Corrugated Cardboard With An Inner Liner Of Bubble Wrap And Foam. Inside The Box, The System Will Be Secured With Foam Blocks, Bubble Wrap, And Other Packing Materials To Ensure That No Parts Of The System Are Damaged During Transport. The Box Will Be Labeled With The Product Name, The Model Number, And The Shipping Address.
The Home Battery Energy Storage System Will Be Shipped With A Reliable Shipping Carrier Such As UPS, FedEx, Or DHL. All Shipments Will Be Tracked And Insured In Order To Ensure That The System Arrives Safely And On Time. All Shipments Will Require A Signature Upon Delivery.
8. FAQ:
Q1: What is the brand name of the Home Battery Energy Storage System?
A1: The brand name of the Home Battery Energy Storage System is SWP.
Q2: What is the model number of the Home Battery Energy Storage System?
A2: The model number of the Home Battery Energy Storage System is SWP-48100RM.
Q3: Where is the Home Battery Energy Storage System manufactured?
A3: The Home Battery Energy Storage System is manufactured in China.
Q4: What is the capacity of the Home Battery Energy Storage System?
A4: The capacity of the Home Battery Energy Storage System is 48100Wh.
Q5: How long can the Home Battery Energy Storage System last?
A5: The Home Battery Energy Storage System can last up to 10 years with proper maintenance.
